HDPE Plastic HDPE Plastic Joint Fitting Connector 16mm For 288C Cable

Brand Name : Unifiber or OEM

Model Number : HDPE Microduct Joint Fittings Connector

Certification : ROHS

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3~5 days

Packaging Details : Carton box

Product : HDPE Microduct Joint Fittings Connector

Dimension : 5/3.5 7/3.5 10/8 12/10 14/10 16/12 20/16mm

Working Pressure : 20 bar

Material : Polyethylene HDPE

Temperature : -10℃/+50℃

Application : Air with blowing system

Contact Now

HDPE Plastic HDPE Plastic Joint Fitting Connector 16mm For 288C Cable

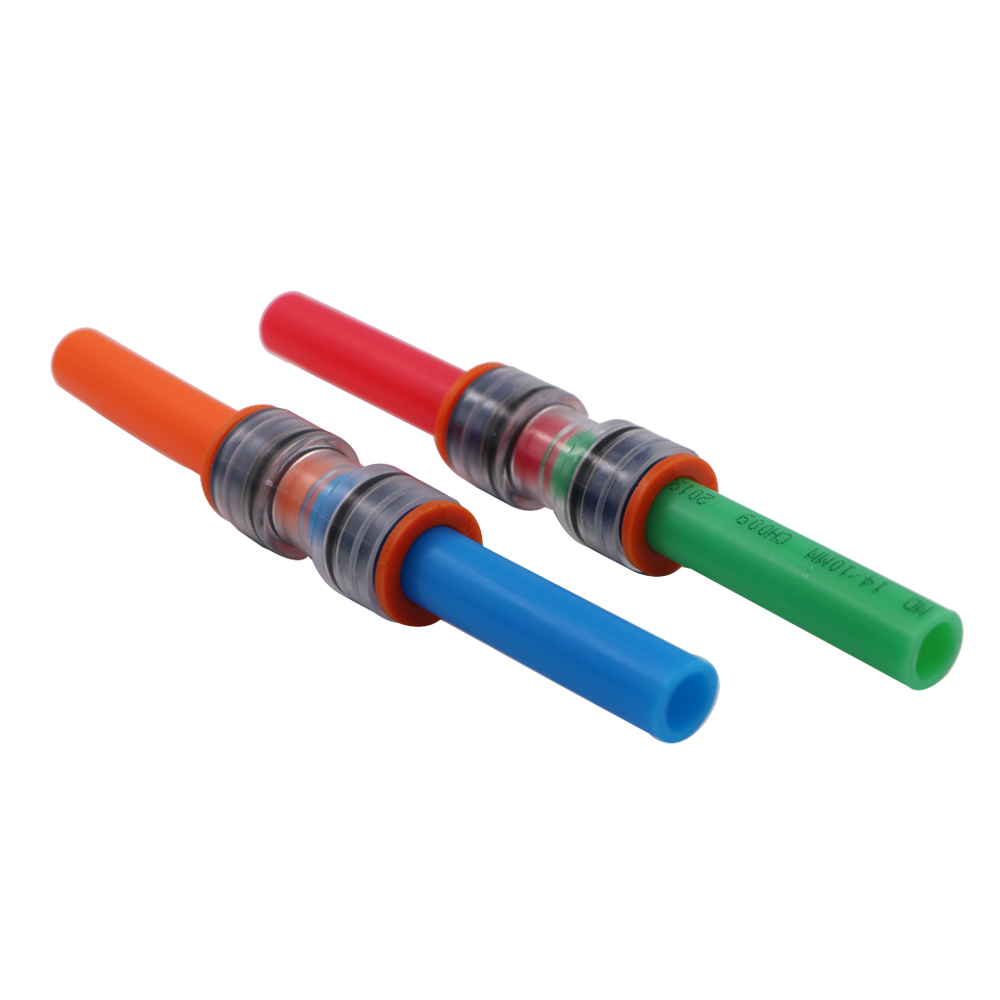

The connector shell is made of PC material, which can prevent corrosion when installed underground. Transparent shell, you can clearly see the connection effect.
HDPE Plastic HDPE Plastic Joint Fitting Connector 16mm For 288C Cable

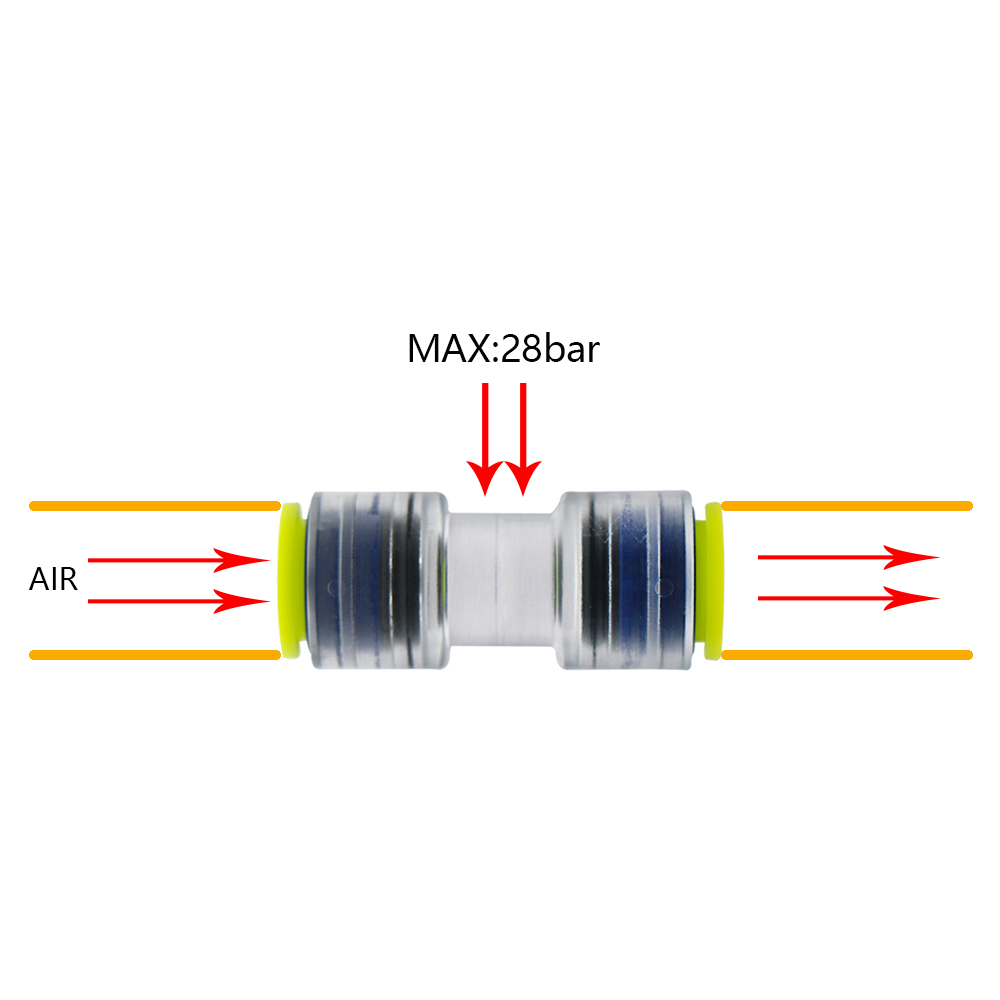

IP68 waterproof rating, the maximum pressure is up to 28bar. Solve the trouble of air leakage during the air blowing process.
HDPE Plastic HDPE Plastic Joint Fitting Connector 16mm For 288C Cable

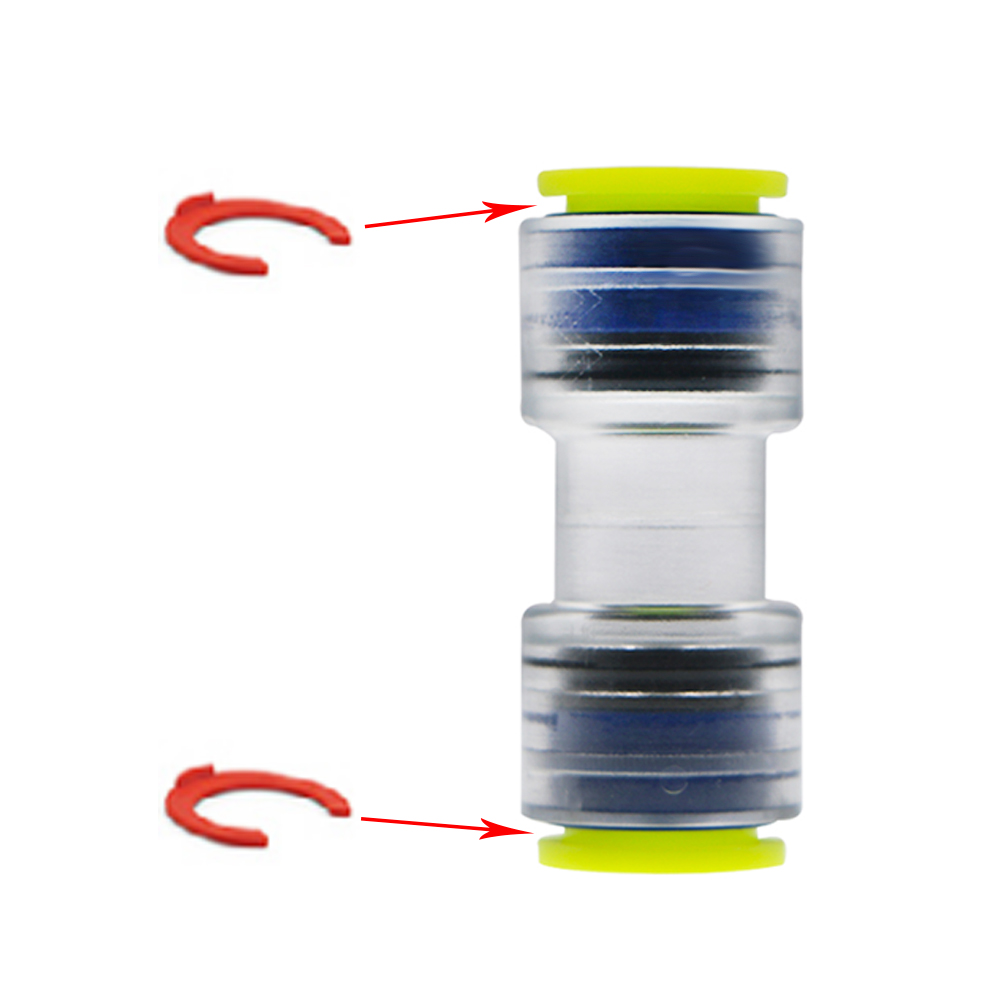

Matching and install the lock clip to prevent falling off due to high pressure gas during the blowing process. Ergonomic design, easy installation and disassembly operation.

Features:

Permanant solid silicon lubricant layer in the inner wall.
Longitudinal ribbed inner wall of microduct to further reduce the friction coefficient of duct so as to be beneficial to cable blowing.
Maximal accommodation is 288C micro cable.
Can be placed into the existing pipe system to fulfill the pipe hole expansion.
Reduce the construction cost, and shorten the construction period.

Specifiation:

TubeToConnector
Polyethylene HDPE
Fluid
Air with blowing system
Working Pressure
20 bar
MAX.Pressure
28 bar
Tube Assembly
No tooling required
Water Ingress Test
0.5 bar during 168 hours
OutdoorExposureLimit @CetralEurope
12 months
High Pressure Resistance (safety)
>50bar
Working Temperature
-45℃/+50℃
Recommended Blowing Temperature
-15℃/+35℃
